Compact 360W mixer amplifier with 5 inputs
● Rack-mountable 5-channel mixer amplifier for commercial installations
● SD, USB, FM and Bluetooth. XLR, mic/line and RCA inputs
● Compact 2U 19″ rack mountable (rack ears supplied)
● Ideal for Gyms, Tannoy Systems, Sports Centres, Cafes, Reception areas, Pubs and general PA requirements
● Inputs for iPods, MP3, CD, Laptops or pretty much anything else
Overview…
RM360S Mixer-Amplifier 100V…
A rack-mountable 5-channel mixer amplifier, tailored to commercial sound installations, that can either be used as a 100V line amplifier or a standard low-impedance amp. Versatile input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt FM radio tuner, front-mounted SD and USB ports, and Bluetooth connectivity, all controlled via an integrated media player for hassle-free playback. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1 and rear panel 24V contacts can mute all except mic input 1 when triggered.
Key Features…
• Power output: 360Wrms
• Speaker: outputs4 x 100V zone / 8 Ohms / COM terminals
• Speaker switching: Zones 1, 2, 3, 4, All
• Weight: 12.68kg
• Dimensions: 433 x 410 x 89mm
• 2U 19″ rack mountable (rack ears supplied)
• XLR input with switchable +20V phantom power – ideal for condenser microphones and paging microphones with chimes
• 2 x mic/line inputs, 2 x RCA line inputs, and 1 x RCA line output
• Switchable ‘voiceover’ feature
• Inbuilt media player with SD, USB and Bluetooth inputs and integrated FM radio tuner
• 100V line or 4-16 ohm speaker output
• 24V emergency mute contacts
• Option for mains or 24Vdc power
• Editable Bluetooth ID for unique pairing
Tech Spec…
• Mains power: 110/240Vac, 50/60Hz (IEC)
• DC power: 24Vdc (screw terminals)
• Inputs: Mic XLR, 2 x mic/line jack, 2 x RCA line
• Input sensitivity: mic 1 (balanced) -53dBV
• Input impedance : mic 1 5k Ohms
• Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)
• Input impedance : inputs 2-5 1k Ohms
• Line output: RCA

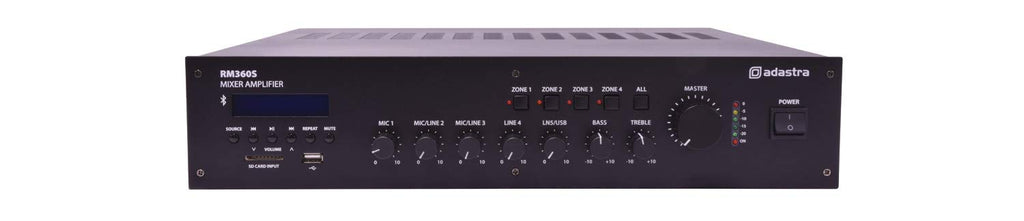

• Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
• Equalizer : bass 100Hz ±10dB
• Equalizer : treble 10kHz ±10dB

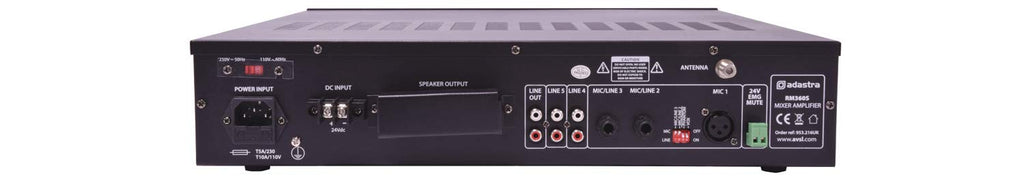

• Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
• Phantom power: +20V (mic 1 input)
• Audio source: USB/SD player, FM tuner and Bluetooth receiver
• Emergency control: 24V contacts – mute all except Mic.1 when triggered
• Bluetooth version: 2.0
• THD: <1.0%
• Dimensions 433x410x89mm
• Weight 12.68kg
